Infrico Aries Ice Cream Serve Over Counter Curved Glass Ventilated Evaporator Plug In

Model:
ICE CREAM DISPLAY CASE ARIES SERIES
Product Code:

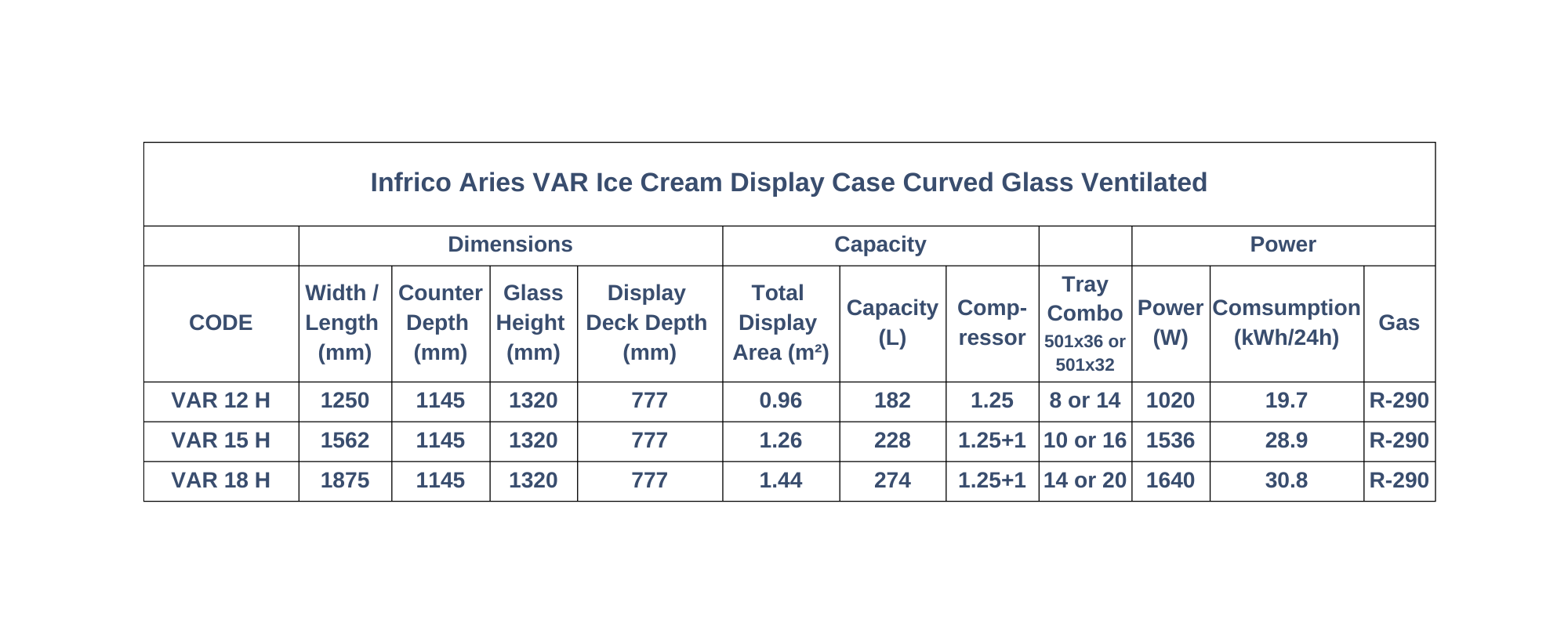

VAR 12 H / VAR 15 H / VAR 18 H

Product Description

Serve Over Counter to display and serve ice cream, gelato and sorbets with ventilated air cooling system. The Infrico Aries range of curved glass ice-cream display counters are designed to display ice cream or gelato at a consistent temperature in style. The counter is 1052mm deep with options to hold between 8 - 20 trays placed in two rows, independently temperature controlled, giving you plenty of options to offer a variety of flavours. Each row can hold pan sizes of either 501x36 or 501x32 (mm). The curved glass front panel glass is tempered and can be lifted from the bottom for easy cleaning, and is heated from the front profile to prevent condensation. The rear worktop is constructed from white quartz compac with sliding rear plexi glass doors. The curved panoramic double glass sides panels are also constructed from tempered glass.

The Infrico Aries curved glass ice cream display counter is produced with slim side panels so it can be sited seamlessly next to another unit. The panels are epoxy painted sheet steel and it sits on an anodised aluminium plinth. The insulation is high-pressure injected polyurethane and is CFC-free, with a density of 40Kg/m. The front and side decoration is high resistance lacquered MDF. The LED Lighting is double 6000K which offers high efficiency and is in cold white to showcase the products. Both the fans and controls are electronic. It also comes with castors for installation and legs for fixing the display in situ.

What you need to know:

Dimensions Icon

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
-15⁰C / -18⁰C
Humidity Range:
Ambient Temperature
35⁰C
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp plug
Evaporation Power:
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290
Condenser:
Cooling:
Touch Screen Icon

Features:

Open Arrow Icon
    • Constructed with a white compac quartz worktop
    • Curved, heated & hinged front glass.
    • Each row independently temperature controlled to more accurately adjust to the desired temperature range
    • Tempered front glass, hinged and heated
    • LED lighting, reducing energy consumption by 80% to 90%.
    • Electronic fans
Documents Icon

Useful Documents

Open Arrow Icon

Product Description

Serve Over Counter to display and serve ice cream, gelato and sorbets with ventilated air cooling system. The Infrico Aries range of curved glass ice-cream display counters are designed to display ice cream or gelato at a consistent temperature in style. The counter is 1052mm deep with options to hold between 8 - 20 trays placed in two rows, independently temperature controlled, giving you plenty of options to offer a variety of flavours. Each row can hold pan sizes of either 501x36 or 501x32 (mm). The curved glass front panel glass is tempered and can be lifted from the bottom for easy cleaning, and is heated from the front profile to prevent condensation. The rear worktop is constructed from white quartz compac with sliding rear plexi glass doors. The curved panoramic double glass sides panels are also constructed from tempered glass.

The Infrico Aries curved glass ice cream display counter is produced with slim side panels so it can be sited seamlessly next to another unit. The panels are epoxy painted sheet steel and it sits on an anodised aluminium plinth. The insulation is high-pressure injected polyurethane and is CFC-free, with a density of 40Kg/m. The front and side decoration is high resistance lacquered MDF. The LED Lighting is double 6000K which offers high efficiency and is in cold white to showcase the products. Both the fans and controls are electronic. It also comes with castors for installation and legs for fixing the display in situ.

What you need to know:

Dimensions Icon

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
-15⁰C / -18⁰C
Humidity Range:
Ambient Temperature
35⁰C
Climate Class:
Temperature Range Icon

Chilling / Freezing Capacity:

Open Arrow Icon
Blast Chilling Temperature:
Blast Freezing Temperature:
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp plug
Evaporation Power:
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290
Condenser:
Cooling:
Touch Screen Icon

Features:

Open Arrow Icon
    • Constructed with a white compac quartz worktop
    • Curved, heated & hinged front glass.
    • Each row independently temperature controlled to more accurately adjust to the desired temperature range
    • Tempered front glass, hinged and heated
    • LED lighting, reducing energy consumption by 80% to 90%.
    • Electronic fans
Documents Icon

Useful Documents

Open Arrow Icon
No items found.
Warranty Icon

Warranty

2 years on site Subject to Terms and Conditions (operation and position must be in line with manufacturers Operating Manual, positioning with sufficient airflow and ambient temperature, routine cleaning, maintenance and annual servicing by a qualified refrigeration engineer)
