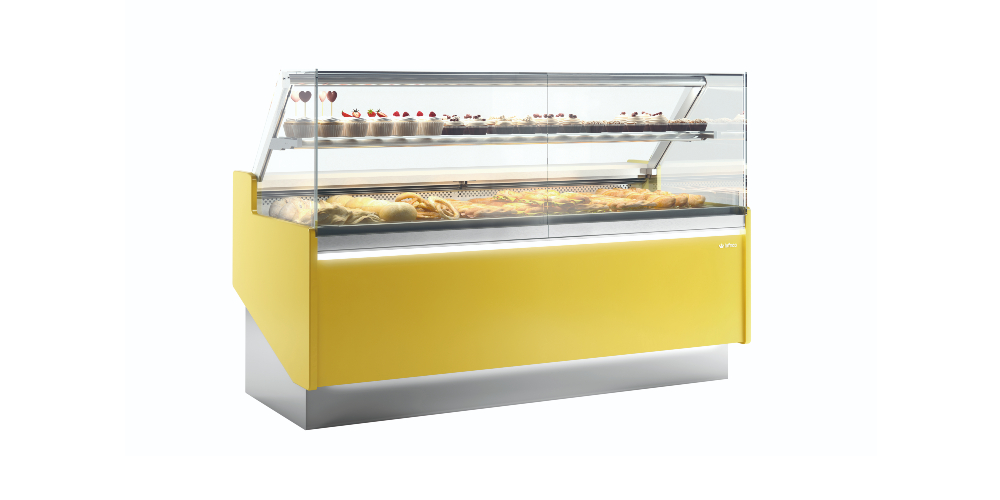

Infrico Lyon Pastry Serve Over Counter Low Height Glass Ventilated Evaporator Plug In

Model:
PASTRY DISPLAY CASE
Product Code:
VLY 9 LG / VLY 9 ILG / VLY 12 LG / VLY 12 ILG / VLY 15 LG / VLY 15 ILG / VLY 18 LG / VLY 18 ILG / VLY 25 LG / VLY 25 ILG

Product Description

The Infrico VLY LG Lyon Pastry Serve Over Counter with low-height straight glass is a plug-in, refrigerated display case that utilises a ventilated evaporator system to maintain precise temperature and humidity conditions for delicate baked goods.

Key attributes include:

  • A low-height straight glass profile that maximises product visibility and promotes a clean, modern counter aesthetic, encouraging impulse purchases. The glass is secured and tempered for safety.
  • A ventilated (forced air) cooling system offers even temperature distribution throughout the display area, and uses a plug-in power connection.
  • An automatic defrost system and semi-static evaporation.
  • Temperature range of +4°C to +8°C.
  • Interior and display deck are AISI 304 stainless steel, providing durability and a hygienic, easy-to-clean surface.
  • The exterior is generally plastified stainless steel with a white compact quartz worktop.
  • High-efficiency LED lighting is included in the display top (and often as frontal decoration) to enhance product presentation while significantly reducing energy consumption compared to traditional lighting.
  • A digital controller provides precision management of temperature and humidity settings, vital for preserving pastries and cakes.
  • Part of the Lyon modular line, the unit can be combined with angles and other counters to form a continuous, custom layout to fit specific counter footprints.
  • The system includes a leak detection system for the refrigerant circuit, with units 100% tested in a Helium chamber. The materials used are CFC-free for insulation.
  • Designed for staff to gain easy access during service with an option for rear sliding doors - on specific models

Product Description

The Infrico VLY LG Lyon Pastry Serve Over Counter with low-height straight glass is a plug-in, refrigerated display case that utilises a ventilated evaporator system to maintain precise temperature and humidity conditions for delicate baked goods.

Key attributes include:

  • A low-height straight glass profile that maximises product visibility and promotes a clean, modern counter aesthetic, encouraging impulse purchases. The glass is secured and tempered for safety.
  • A ventilated (forced air) cooling system offers even temperature distribution throughout the display area, and uses a plug-in power connection.
  • An automatic defrost system and semi-static evaporation.
  • Temperature range of +4°C to +8°C.
  • Interior and display deck are AISI 304 stainless steel, providing durability and a hygienic, easy-to-clean surface.
  • The exterior is generally plastified stainless steel with a white compact quartz worktop.
  • High-efficiency LED lighting is included in the display top (and often as frontal decoration) to enhance product presentation while significantly reducing energy consumption compared to traditional lighting.
  • A digital controller provides precision management of temperature and humidity settings, vital for preserving pastries and cakes.
  • Part of the Lyon modular line, the unit can be combined with angles and other counters to form a continuous, custom layout to fit specific counter footprints.
  • The system includes a leak detection system for the refrigerant circuit, with units 100% tested in a Helium chamber. The materials used are CFC-free for insulation.
  • Designed for staff to gain easy access during service with an option for rear sliding doors - on specific models

What you need to know:

Dimensions Icon

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
+4⁰C / +8⁰C
Humidity Range:
Ambient Temperature
25⁰C
Climate Class:
Temperature Range Icon

Chilling / Freezing Capacity:

Open Arrow Icon
Blast Chilling Temperature:
Blast Freezing Temperature:
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp plug
Evaporation Power:
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290
Condenser:
Cooling:
Documents Icon

Useful Documents

Open Arrow Icon
No items found.
Warranty Icon

Warranty

2 years on site Subject to Terms and Conditions (operation and position must be in line with manufacturers Operating Manual, positioning with sufficient airflow and ambient temperature, routine cleaning, maintenance and annual servicing by a qualified refrigeration engineer)
