Infrico Lyon Heated Serve Over Counter Straight Glass with Bain Marie

Model:
PASTRY DISPLAY CASE
Product Code:
VLY 12 BMS / VLY 15 BMS

Product Description

The Infrico Lyon Heated Serve Over Counter Straight Glass with Bain Marie is a modular hot holding unit designed for assisted service, featuring an internal water bath system for maintaining food temperature and moisture.

Key attributes of the unit include:

  • A modular design that allows it to be combined with other counters and angles to form a continuous frontage.
  • It includes a straight front glass sneeze screen made of toughened glass for hygiene and safety.
  • The unit uses a bain marie (water bath) system, which provides gentle, indirect wet heat to prevent food from drying out. Some models can also be used for dry heat. Heat is also supplemented by overhead gantry halogen or LED heat lamps to ensure even temperature maintenance.
  • The temperature is regulated by a digital controller, with a working range typically between +60°C and +70°C.
  • The interior and exterior are constructed from durable AISI 304 stainless steel. The worktop is also stainless steel.
  • The bain marie accepts standard Gastronorm (GN) containers, providing flexibility in food presentation and service.
  • The front glass is typically hinged or designed to open for easy cleaning. A drainage tap is included for convenient water release from the bain marie well.
  • Internal illumination, including the gantry lamps, ensures strong product visibility for customers

Product Description

The Infrico Lyon Heated Serve Over Counter Straight Glass with Bain Marie is a modular hot holding unit designed for assisted service, featuring an internal water bath system for maintaining food temperature and moisture.

Key attributes of the unit include:

  • A modular design that allows it to be combined with other counters and angles to form a continuous frontage.
  • It includes a straight front glass sneeze screen made of toughened glass for hygiene and safety.
  • The unit uses a bain marie (water bath) system, which provides gentle, indirect wet heat to prevent food from drying out. Some models can also be used for dry heat. Heat is also supplemented by overhead gantry halogen or LED heat lamps to ensure even temperature maintenance.
  • The temperature is regulated by a digital controller, with a working range typically between +60°C and +70°C.
  • The interior and exterior are constructed from durable AISI 304 stainless steel. The worktop is also stainless steel.
  • The bain marie accepts standard Gastronorm (GN) containers, providing flexibility in food presentation and service.
  • The front glass is typically hinged or designed to open for easy cleaning. A drainage tap is included for convenient water release from the bain marie well.
  • Internal illumination, including the gantry lamps, ensures strong product visibility for customers

What you need to know:

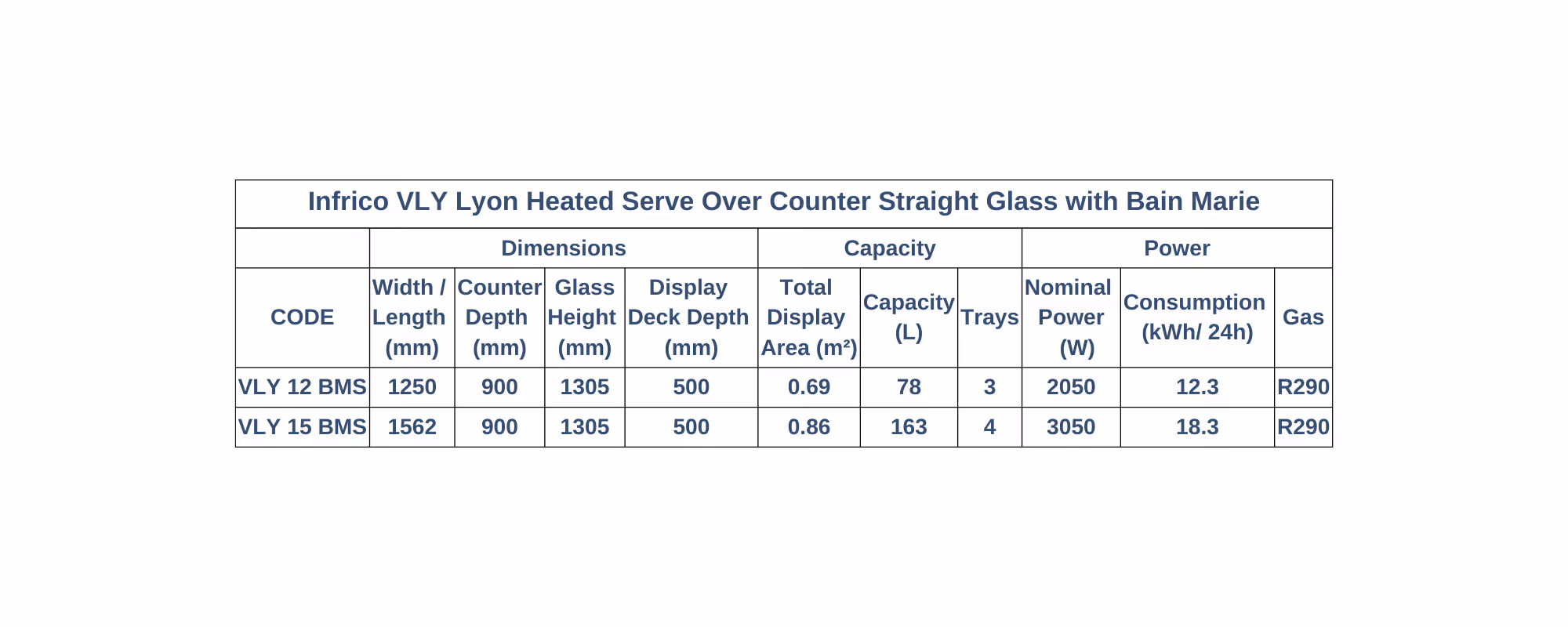

Dimensions Icon

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
+60⁰C / +70⁰C
Humidity Range:
Ambient Temperature
25⁰C
Climate Class:
Temperature Range Icon

Chilling / Freezing Capacity:

Open Arrow Icon
Blast Chilling Temperature:
Blast Freezing Temperature:
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
Evaporation Power:
45 watts
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290
Condenser:
Cooling:
Documents Icon

Useful Documents

Open Arrow Icon
No items found.
Warranty Icon

Warranty

2 years on site Subject to Terms and Conditions (operation and position must be in line with manufacturers Operating Manual, positioning with sufficient airflow and ambient temperature, routine cleaning, maintenance and annual servicing by a qualified refrigeration engineer)
