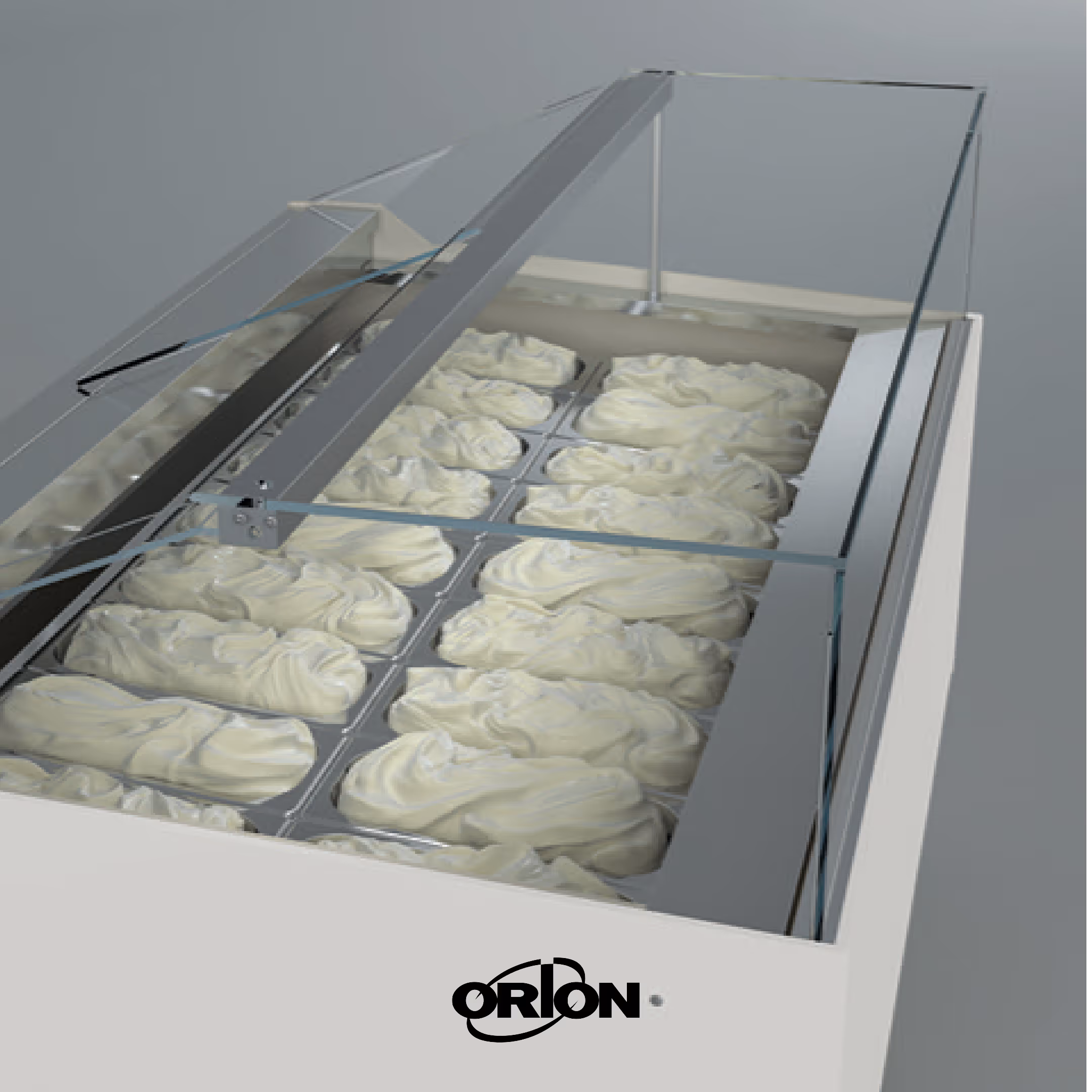

Orion Cubito Ice Cream Display Serve Over Counter Straight Glass Ventilated Evaporator Plug In

Model:
Orion Cubito
Product Code:
Cubito

Product Description

The Orion Cubito Ice Cream Display Serve Over Counter with straight glass is an agile, reliable, and minimalist plug-in unit designed to focus customer attention entirely on the product

Key attributes include:

  • A straight-line design and a large, high-transparency glass display offers maximum product visibility.
  • The minimalist aesthetic ensures the attention is on the ice cream.
  • A ventilated (forced air) cooling system guarantees perfect preservation and an even temperature distribution.
  • A plug-in unit equipped with an automatic defrost system (often via hot gas).
  • Temperature Range suitable for scoop ice cream, typically around -18°C to -20°C.
  • A robust metal sheet base and a stainless steel internal covering and worktop. The structure is insulated with environmentally friendly, CFC and HFC-free polyurethane foam.
  • Available in different lengths to accommodate various numbers of standard 5-litre Napoli pans, such as 12 or 18 pans, depending on the model width.
  • A cleverly designed LED lighting is often concealed above the ice cream to enhance product presentation.
  • Features rear closure, often with sliding plexiglass doors or a roller blind, for ease of access during service.
  • The straight front glass typically opens (downwards or via a lift system) for easy cleaning.
  • The unit includes water drainage with a collection bowl.
  • Some modern versions use eco-friendly R290 propane gas as a refrigerant, significantly reducing environmental impact

What you need to know:

Dimensions Icon

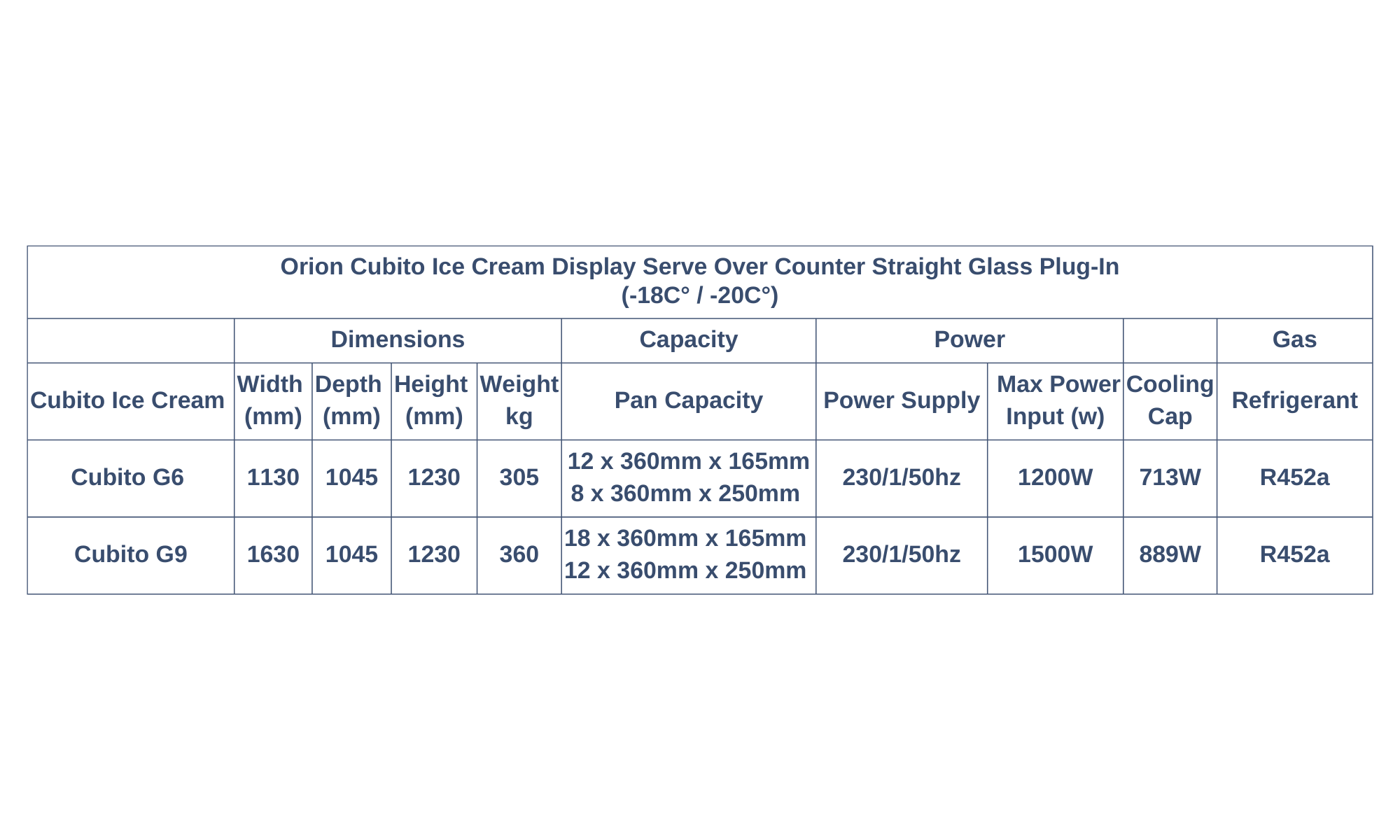

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
-18°C / -20°C
Humidity Range:
Ambient Temperature
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp plug
Evaporation Power:
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290 / R452a
Condenser:
Cooling:
Documents Icon

Useful Documents

Open Arrow Icon

Product Description

The Orion Cubito Ice Cream Display Serve Over Counter with straight glass is an agile, reliable, and minimalist plug-in unit designed to focus customer attention entirely on the product

Key attributes include:

  • A straight-line design and a large, high-transparency glass display offers maximum product visibility.
  • The minimalist aesthetic ensures the attention is on the ice cream.
  • A ventilated (forced air) cooling system guarantees perfect preservation and an even temperature distribution.
  • A plug-in unit equipped with an automatic defrost system (often via hot gas).
  • Temperature Range suitable for scoop ice cream, typically around -18°C to -20°C.
  • A robust metal sheet base and a stainless steel internal covering and worktop. The structure is insulated with environmentally friendly, CFC and HFC-free polyurethane foam.
  • Available in different lengths to accommodate various numbers of standard 5-litre Napoli pans, such as 12 or 18 pans, depending on the model width.
  • A cleverly designed LED lighting is often concealed above the ice cream to enhance product presentation.
  • Features rear closure, often with sliding plexiglass doors or a roller blind, for ease of access during service.
  • The straight front glass typically opens (downwards or via a lift system) for easy cleaning.
  • The unit includes water drainage with a collection bowl.
  • Some modern versions use eco-friendly R290 propane gas as a refrigerant, significantly reducing environmental impact

What you need to know:

Dimensions Icon

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
-18°C / -20°C
Humidity Range:
Ambient Temperature
Climate Class:
Temperature Range Icon

Chilling / Freezing Capacity:

Open Arrow Icon
Blast Chilling Temperature:
Blast Freezing Temperature:
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp plug
Evaporation Power:
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290 / R452a
Condenser:
Cooling:
Documents Icon

Useful Documents

Open Arrow Icon
No items found.
Warranty Icon

Warranty

2 years on site Subject to Terms and Conditions (operation and position must be in line with manufacturers Operating Manual, positioning with sufficient airflow and ambient temperature, routine cleaning, maintenance and annual servicing by a qualified refrigeration engineer)
