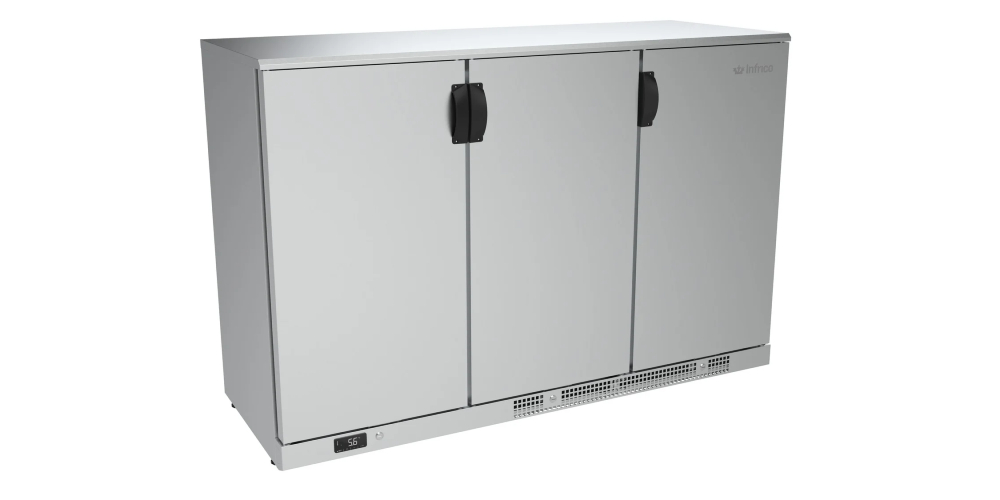

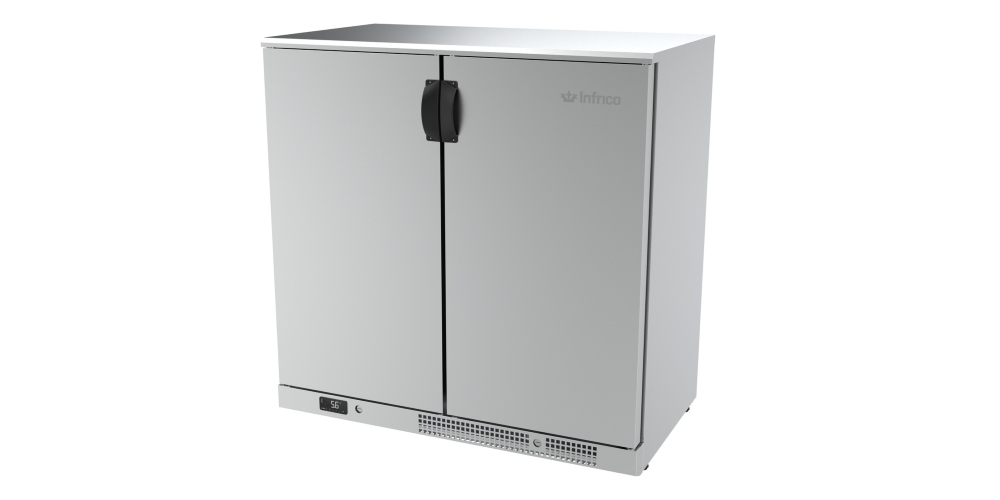

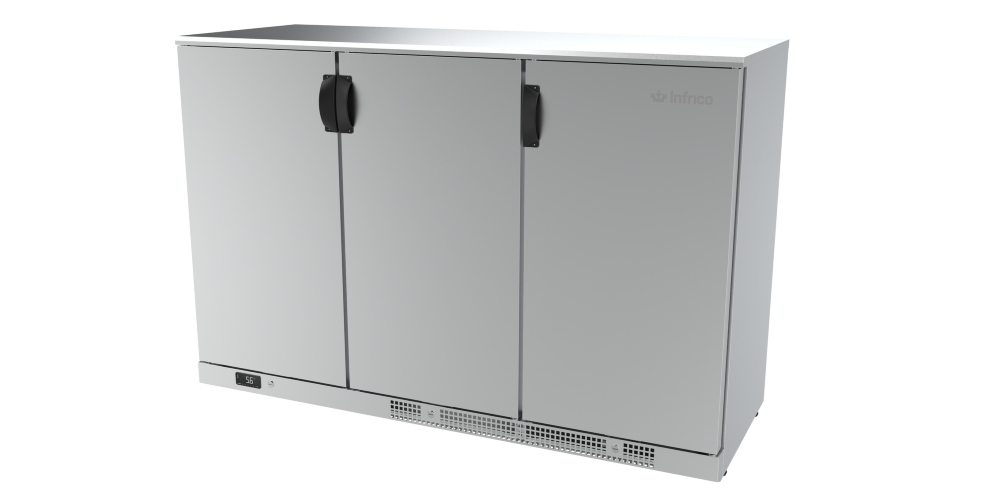

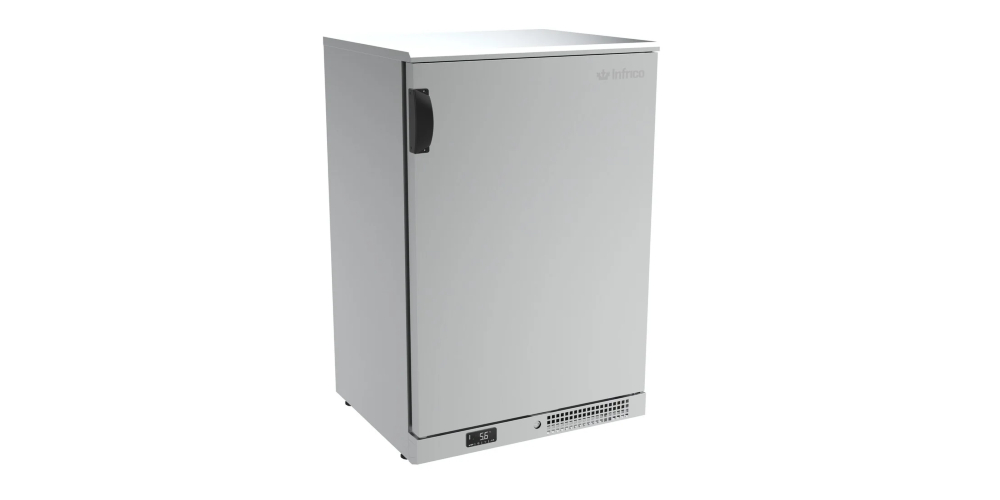

Infrico ERV-PP-II Refrigerated Back Bar Stainless Steel with Hinged Solid Doors

Model:
BACK BAR 920 ERV PP II
Product Code:
ERV 15 PP II / ERV 25 PP II / ERV 35 PP II

Product Description

This is a stainless steel under-counter back bar cooler with hinged solid doors, designed to chill and store alcoholic drinks and carbonated beverages to temperatures between +4°C and +12°C.

Infrico Refrigerated Back Bar Stainless Steel with Hinged Solid Doors.

Provides between 140 and 330 litres of capacity in the chamber.

Energy efficient R290 refrigeration system.

Supplied with 2 x 504 x 27/28/31 (mm) adjustable dividers to hold bottles (not included).

Supplied on height adjustable legs, easy to use controller, internal LED light and door lock as standard.

Requires connection 230/1/50hz power.

What you need to know:

Dimensions Icon

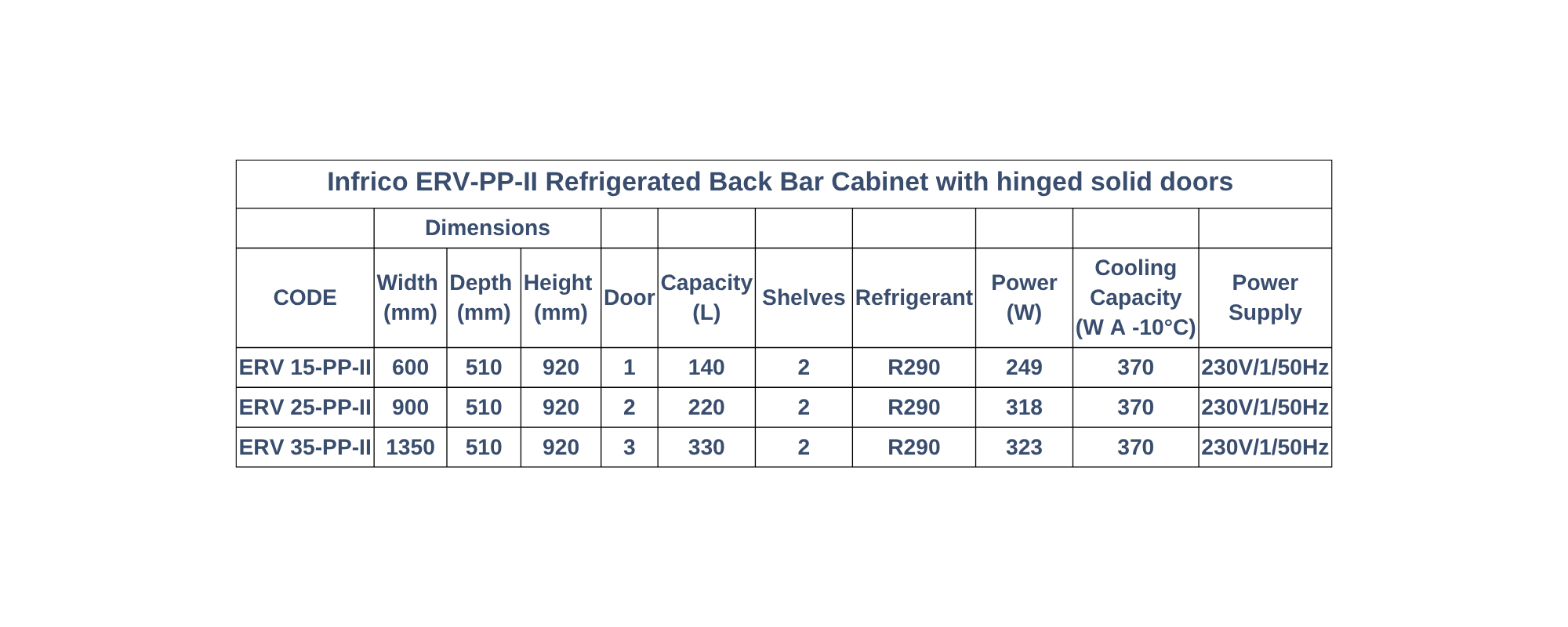

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
+4ºC / +12ºC
Humidity Range:
Ambient Temperature
38ºC
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp connection
Evaporation Power:
249 - 323 watts
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290
Condenser:
Cooling:
Documents Icon

Useful Documents

Open Arrow Icon

Product Description

This is a stainless steel under-counter back bar cooler with hinged solid doors, designed to chill and store alcoholic drinks and carbonated beverages to temperatures between +4°C and +12°C.

Infrico Refrigerated Back Bar Stainless Steel with Hinged Solid Doors.

Provides between 140 and 330 litres of capacity in the chamber.

Energy efficient R290 refrigeration system.

Supplied with 2 x 504 x 27/28/31 (mm) adjustable dividers to hold bottles (not included).

Supplied on height adjustable legs, easy to use controller, internal LED light and door lock as standard.

Requires connection 230/1/50hz power.

What you need to know:

Dimensions Icon

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
+4ºC / +12ºC
Humidity Range:
Ambient Temperature
38ºC
Climate Class:
4
Temperature Range Icon

Chilling / Freezing Capacity:

Open Arrow Icon
Blast Chilling Temperature:
Blast Freezing Temperature:
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp connection
Evaporation Power:
249 - 323 watts
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290
Condenser:
Cooling:
Documents Icon

Useful Documents

Open Arrow Icon
No items found.
Warranty Icon

Warranty

2 years on site Subject to Terms and Conditions (operation and position must be in line with manufacturers Operating Manual, positioning with sufficient airflow and ambient temperature, routine cleaning, maintenance and annual servicing by a qualified refrigeration engineer)
