Coreco CDS3-H1 Refrigerated Fruit and Vegetables Multideck Display Self Service Open Fronted with Night Blind

Model:
CDS3-H1 900
Product Code:
CDS3-06-H1 / CDS3-09-H1 / CDS3-12-H1 / CDS3-15-H1 / CDS3-18-H1 / CDS3-25-H1

Product Description

The Coreco Vitrina CDSO 900mm multideck self serve display cabinet offers a stylish option to display fruit and vegetables in a retail environment. A premium, plug-in open display chiller its open front design and night blind feature enhance "grab and go" visibility while keeping operating costs and food waste strictly to a minimum.

The Integrated night blind draws down smoothly after trading hours, significantly reducing energy usage while retaining chilled air for maximum efficiency. An open-front design with panoramic glass side panels enhances product visibility, encouraging self-service and driving impulse sales through clear, uninterrupted display. A flexible, tiered shelving can be easily adjusted to accommodate a wide range of product shapes and sizes, ensuring a clean, organised presentation at all times. Removable base plates allow for quick and convenient cleaning, supporting high hygiene standards with minimal effort. Supplied with a standard 13-amp plug for effortless, plug-and-play installation—no external condensing unit required.

What you need to know:

Dimensions Icon

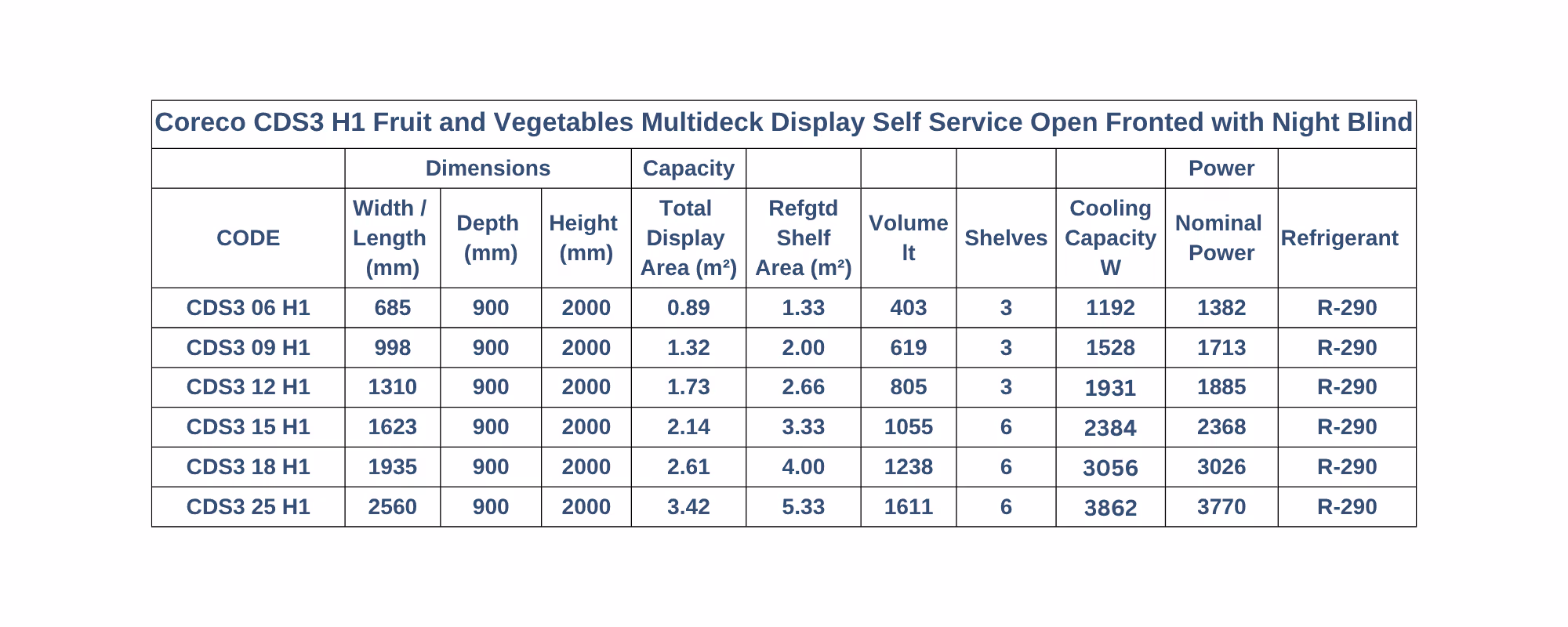

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
1°C / +10°C
Humidity Range:
Ambient Temperature
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp connection
Evaporation Power:
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290
Condenser:
Cooling:
Touch Screen Icon

Features:

Open Arrow Icon
  • Manual night blindand and inferior exposition deck perspex
  • 30 mm sides,standard in gray ABS RAL 7024
  • Interior: white RAL9003 or black RAL 9005
  • Exterior: white RAL9003, black RAL 9005 or grey RAL 7024
  • Mirror on the topand methacrylate front stop on the shelves, standard
  • Ventilatedevaporator EPOXY with anticorrosive coating
  • Natural defrost ofevaporator with automatic evaporation tray
  • Electromechanicfans
  • Electronic control
  • 24v LED 4000klighting

Options:

  • Panoramic side(double glass) optional
  • Coloured sides,only front (upper and lower strip) or all over
Documents Icon

Useful Documents

Open Arrow Icon

Product Description

The Coreco Vitrina CDSO 900mm multideck self serve display cabinet offers a stylish option to display fruit and vegetables in a retail environment. A premium, plug-in open display chiller its open front design and night blind feature enhance "grab and go" visibility while keeping operating costs and food waste strictly to a minimum.

The Integrated night blind draws down smoothly after trading hours, significantly reducing energy usage while retaining chilled air for maximum efficiency. An open-front design with panoramic glass side panels enhances product visibility, encouraging self-service and driving impulse sales through clear, uninterrupted display. A flexible, tiered shelving can be easily adjusted to accommodate a wide range of product shapes and sizes, ensuring a clean, organised presentation at all times. Removable base plates allow for quick and convenient cleaning, supporting high hygiene standards with minimal effort. Supplied with a standard 13-amp plug for effortless, plug-and-play installation—no external condensing unit required.

What you need to know:

Dimensions Icon

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
1°C / +10°C
Humidity Range:
Ambient Temperature
Climate Class:
3
Temperature Range Icon

Chilling / Freezing Capacity:

Open Arrow Icon
Blast Chilling Temperature:
Blast Freezing Temperature:
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp connection
Evaporation Power:
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290
Condenser:
Cooling:
Touch Screen Icon

Features:

Open Arrow Icon
  • Manual night blindand and inferior exposition deck perspex
  • 30 mm sides,standard in gray ABS RAL 7024
  • Interior: white RAL9003 or black RAL 9005
  • Exterior: white RAL9003, black RAL 9005 or grey RAL 7024
  • Mirror on the topand methacrylate front stop on the shelves, standard
  • Ventilatedevaporator EPOXY with anticorrosive coating
  • Natural defrost ofevaporator with automatic evaporation tray
  • Electromechanicfans
  • Electronic control
  • 24v LED 4000klighting

Options:

  • Panoramic side(double glass) optional
  • Coloured sides,only front (upper and lower strip) or all over
Documents Icon

Useful Documents

Open Arrow Icon
Coreco Colour options
Coreco Cabinet Colour Options
Warranty Icon

Warranty

2 years on site Subject to Terms and Conditions (operation and position must be in line with manufacturers Operating Manual, positioning with sufficient airflow and ambient temperature, routine cleaning, maintenance and annual servicing by a qualified refrigeration engineer)
