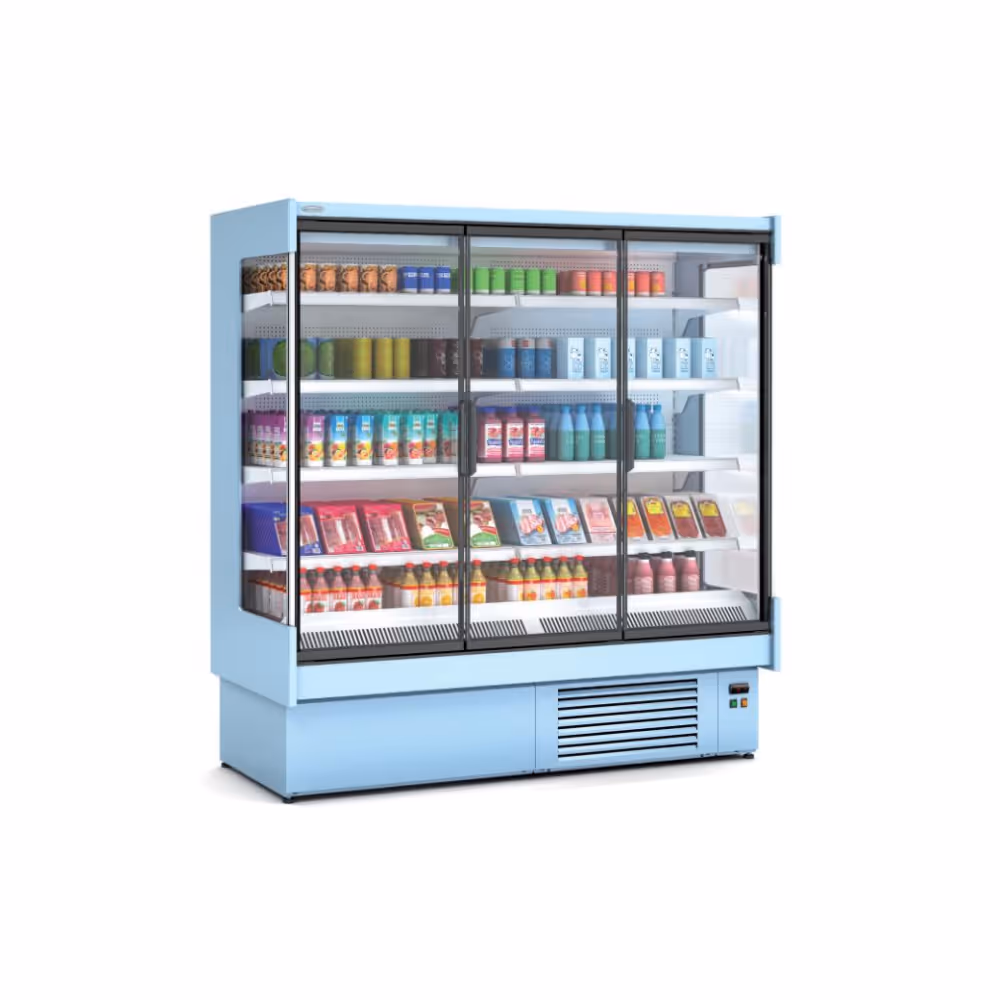

Coreco CDG1-M Refrigerated Multideck Display Self Service with Glass Doors

Model:
CDG1-M 800
Product Code:
CDG1-06-M / CDG1-09-M / CDG1-12-M / CDG1-15-M / CDG1-18-M / CDG1-25-M / CDG1-31-M

Product Description

The Coreco CDG1-M 800mm Multideck Display with glass doors is a high-efficiency self-service merchandiser. It combines the impulse-buying appeal of open multidecks with the operational savings and temperature stability of a closed unit, ensuring your products are perfectly preserved while drastically cutting energy consumption

The glass doors act as an effective barrier against cold air loss, helping to significantly reduce energy usage — delivering savings of up to 70% compared to open-fronted units. Combined with a ventilated evaporator ensures reliable temperature control (typically between -1°C and +5°C), keeping products fresh, safe, and compliant. See through crystal-clear glass doors, paired with integrated LED lighting, present products at their best — enhancing visibility and encouraging impulse purchases. Plus the stable internal conditions extend shelf life across chilled products, helping to reduce spoilage and improve overall stock efficiency.

Key Specifications

Standard 13-amp plug for straightforward installation — no hardwiring required

Environmentally friendly R290

Adjustable shelving, high-performance injected polyurethane insulation, and a durable stainless steel bumper for added protection

What you need to know:

Dimensions Icon

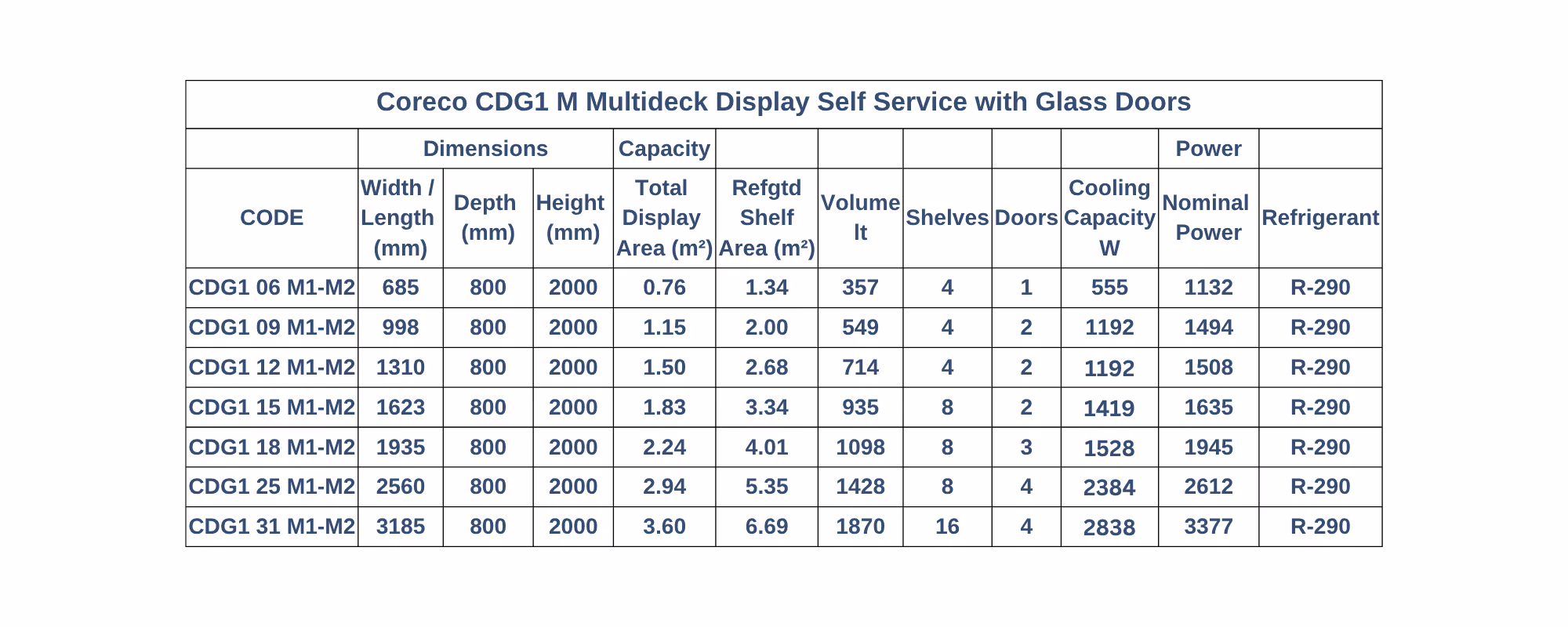

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
Humidity Range:
Ambient Temperature
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp connection
Evaporation Power:
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290
Condenser:
Cooling:
Touch Screen Icon

Features:

Open Arrow Icon
  • Frameless hinged doors with complete glazed frontal, maxopening
  • 93° with manual blocking closure. Self-closing with torsionbar
  • 30 mm sides
  • Exterior and interior in stainless steel
  • Ventilated evaporator EPOXY with anticorrosive coating
  • Natural defrost of evaporator with automatic evaporationtray
  • Electromechanical fans
  • Electronic control
  • 24v LED 4000k lighting
  • M1: -1°+5°C, suitable for meat
  • M2: -1°+7°C , suitable for dairy products, delis andsausages
Documents Icon

Useful Documents

Open Arrow Icon

Product Description

The Coreco CDG1-M 800mm Multideck Display with glass doors is a high-efficiency self-service merchandiser. It combines the impulse-buying appeal of open multidecks with the operational savings and temperature stability of a closed unit, ensuring your products are perfectly preserved while drastically cutting energy consumption

The glass doors act as an effective barrier against cold air loss, helping to significantly reduce energy usage — delivering savings of up to 70% compared to open-fronted units. Combined with a ventilated evaporator ensures reliable temperature control (typically between -1°C and +5°C), keeping products fresh, safe, and compliant. See through crystal-clear glass doors, paired with integrated LED lighting, present products at their best — enhancing visibility and encouraging impulse purchases. Plus the stable internal conditions extend shelf life across chilled products, helping to reduce spoilage and improve overall stock efficiency.

Key Specifications

Standard 13-amp plug for straightforward installation — no hardwiring required

Environmentally friendly R290

Adjustable shelving, high-performance injected polyurethane insulation, and a durable stainless steel bumper for added protection

What you need to know:

Dimensions Icon

Measurements

Open Arrow Icon
Temperature Range Icon

Temperature / Climate:

Open Arrow Icon
Temperature Range:
Humidity Range:
Ambient Temperature
Climate Class:
3
Temperature Range Icon

Chilling / Freezing Capacity:

Open Arrow Icon
Blast Chilling Temperature:
Blast Freezing Temperature:
Power Usage Icon

Power:

Open Arrow Icon
Voltage:
230/1/50hz
Connection:
13 amp connection
Evaporation Power:
Absorption:
Energy Class:

Refrigeration System:

Open Arrow Icon
Refrigerant:
R290
Condenser:
Cooling:
Touch Screen Icon

Features:

Open Arrow Icon
  • Frameless hinged doors with complete glazed frontal, maxopening
  • 93° with manual blocking closure. Self-closing with torsionbar
  • 30 mm sides
  • Exterior and interior in stainless steel
  • Ventilated evaporator EPOXY with anticorrosive coating
  • Natural defrost of evaporator with automatic evaporationtray
  • Electromechanical fans
  • Electronic control
  • 24v LED 4000k lighting
  • M1: -1°+5°C, suitable for meat
  • M2: -1°+7°C , suitable for dairy products, delis andsausages
Documents Icon

Useful Documents

Open Arrow Icon
Coreco Colour options
Coreco Cabinet Colour Options
Warranty Icon

Warranty

2 years on site Subject to Terms and Conditions (operation and position must be in line with manufacturers Operating Manual, positioning with sufficient airflow and ambient temperature, routine cleaning, maintenance and annual servicing by a qualified refrigeration engineer)
